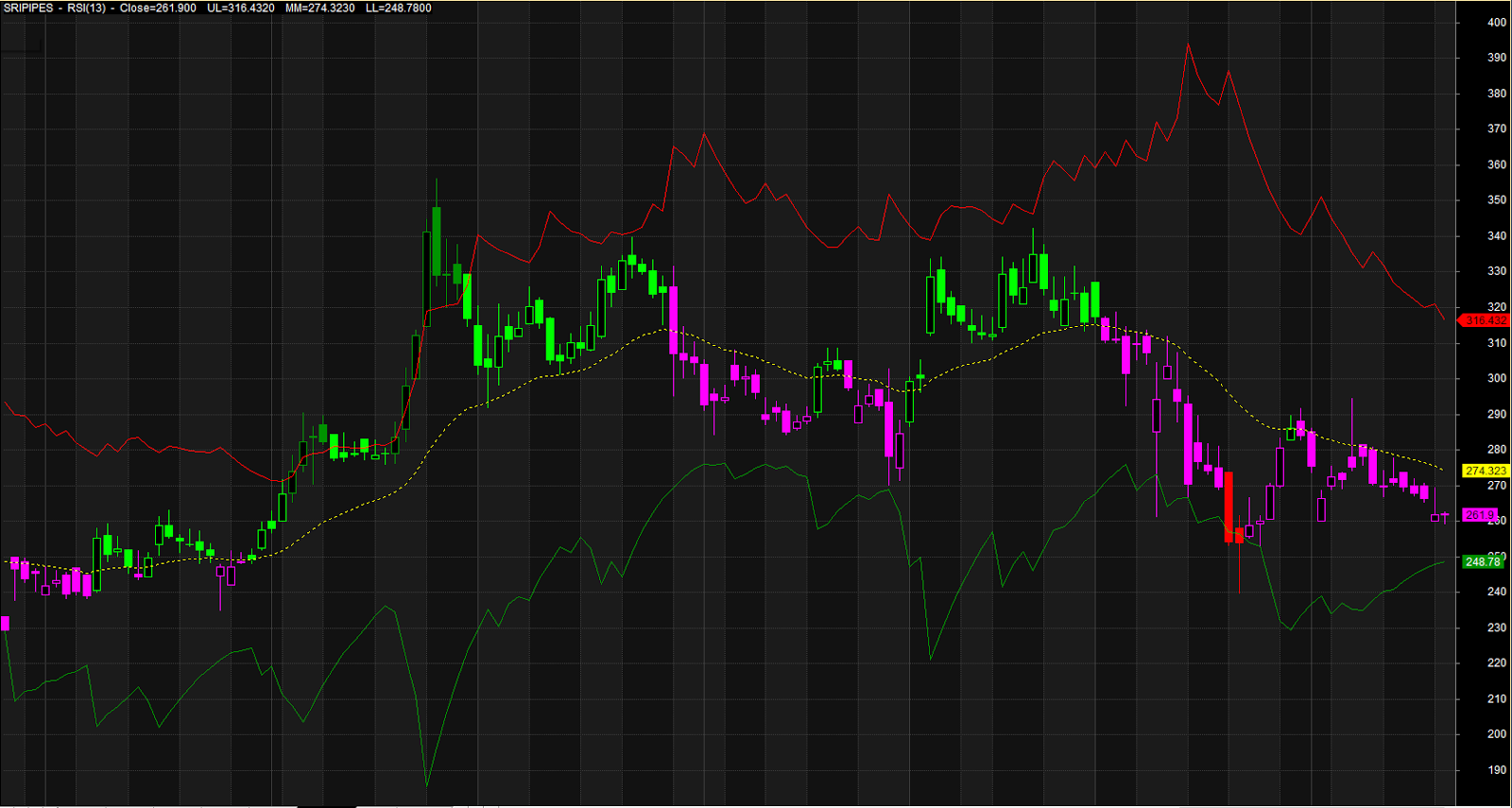

Click Image To Enlarge. Please Rate And Comment.
// RSI Levels - appplied to Price Chart shows how far
// tomorrow's closing price has to move in order for
// the RSI to cross the 70, 50 & 30 levels.
pd = Param("Periods",13,5,144,1);
pds = 2*pd-1;// (Adjustment for Wilders MA)
aa = Close-Ref(Close,-1);
uu = EMA(Max(0,aa),pds);
dd= EMA((Max(0,0-aa)),pds);
rf = IIf(C>2,1000,10000);
c1 = Param("Upper Level",70,50,90,1);
qq1 =100/(100-c1)-1;
ff1 = qq1*dd-uu;
ff2 = ff1/qq1;
f1 = Max(ff1,ff2);
UL = Close + f1*(pds-1)/2;
UL = IIf(UL>C,floor(UL*rf),ceil(UL*rf))/rf;
c2 = Param("Equilibrium",50,50,50,0);
qq2 =100/(100-c2)-1;// [=1]
ff = dd-uu;
MM = Close + ff*(pds-1)/2;
MM = IIf(MM>C,floor(MM*rf),ceil(MM*rf))/rf;
c3 = Param("Lower Level",30,10,50,1);
qq3 =100/(100-c3)-1;
ff1 = qq3*dd-uu;
ff2 = ff1/qq3;
f3 = Min(ff1,ff2);
LL = Close + f3*(pds-1)/2;
LL = IIf(LL>C,floor(LL*rf),ceil(LL*rf))/rf;
Plot(UL,"",colorRed,1);
Plot(MM,"",colorYellow,32);
Plot(LL,"",colorGreen,1);
Cbr = IIf(UL<C,27,IIf(LL>C,32,IIf(MM>C,11,8)));
PlotOHLC(O,H,L,C,"",cbr,styleCandle);
Title = Name() + " - RSI(" + WriteVal(pd,0.0) + ") - Close=" + WriteVal(Close,0.3) + " UL=" + WriteVal(UL,0.4) + " MM=" + WriteVal(MM,0.4) + " LL=" + WriteVal(LL,0.4);
