Top Bottom Target Trading Arrows - Amibroker AFL Code

Click Image To Enlarge. Please Rate And Comment.

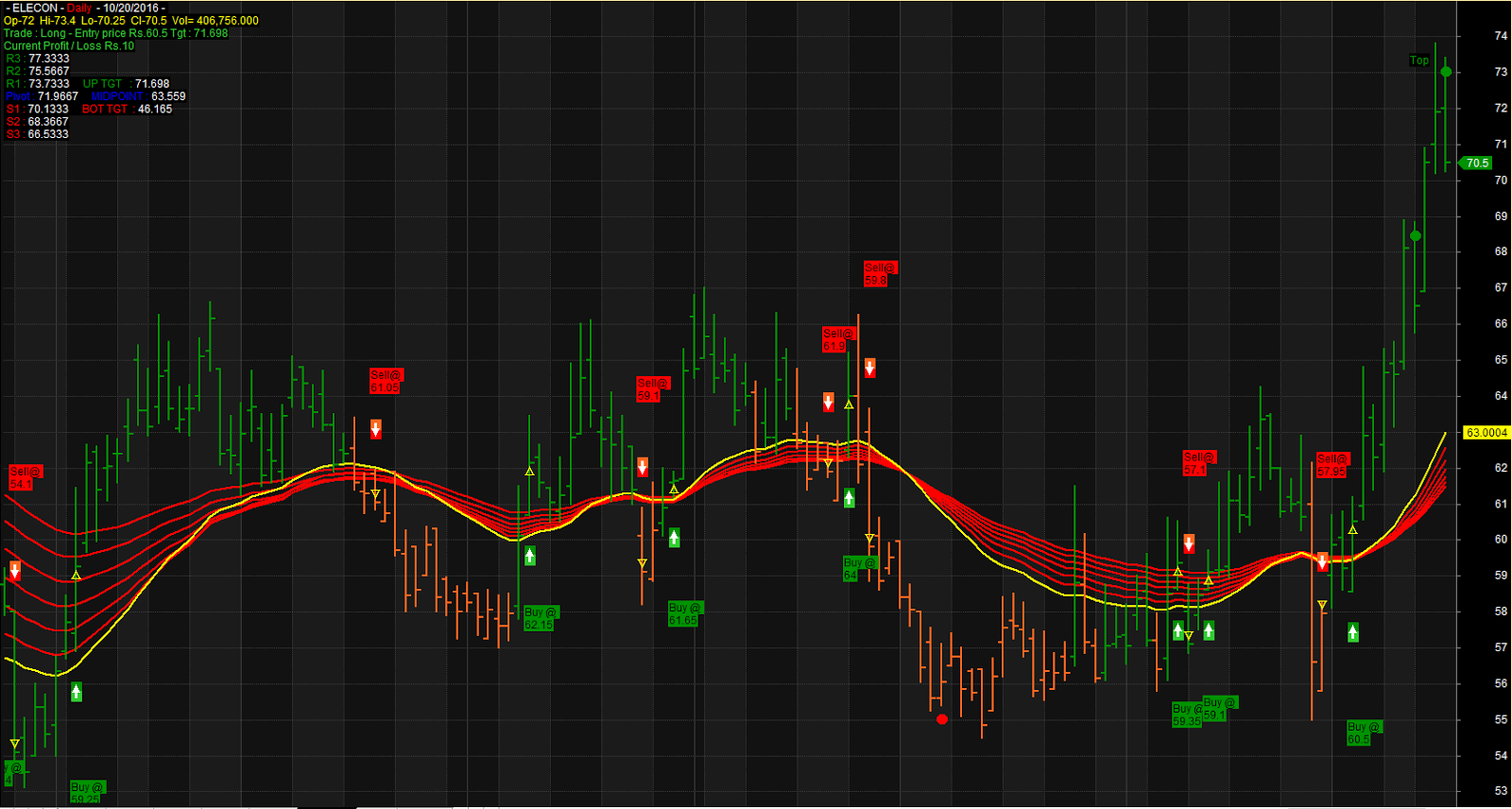

Top Bottom Target Trading Arrows

_SECTION_BEGIN("Price");
Col_1 = IIf(EMA(RSI(39),30) > Ref(EMA(RSI(39),30),-1),colorGreen,colorOrange);



Plot( C, "", col_1, styleBar+styleThick );
_SECTION_END();

piv = (H+L+C)/3;
_SECTION_BEGIN("guppy");
e3 = EMA(piv,3);
e5 = EMA(piv,5);
e8 = EMA(piv,8);
e10 = EMA(piv,10);
e12 = EMA(piv,12);
e15 = EMA(piv,15);

e30 = EMA(piv,30);
e35 = EMA(piv,35);
e40 = EMA(piv,40);
e45 = EMA(piv,45);
e50 = EMA(piv,50);
e55 = EMA(piv,55);
e60 = EMA(piv,60);
Buy_guppy = e3>e35;
Sell_guppy = e35 > e3;
Buy_guppy = ExRem (Buy_guppy,Sell_guppy);
Sell_guppy = ExRem(Sell_guppy,Buy_guppy);
PlotShapes(Buy_guppy*shapeHollowSmallUpTriangle, colorYellow);
PlotShapes(Sell_guppy*shapeHollowSmallDownTriangle,colorYellow);

//Plot (e3,"",colorBlue,styleThick);
//Plot (e5,"",colorBlue,styleThick);
//Plot (e8,"",colorBlue,styleThick);
//Plot (e10,"",colorBlue,styleNoLabel);
//Plot (e12,"",colorBlue,styleNoLabel);
//Plot (e15,"",colorBlue,styleNoLabel);

Plot (e30,"",colorYellow,styleThick);
Plot (e35,"",colorRed,styleNoLabel+styleThick);
Plot (e40,"",colorRed,styleNoLabel+styleThick);
Plot (e45,"",colorRed,styleNoLabel+styleThick);
Plot (e50,"",colorRed,styleNoLabel+styleThick);
Plot (e55,"",colorRed,styleNoLabel+styleThick);
Plot (e60,"",colorRed,styleNoLabel+styleThick);

_SECTION_END();

_SECTION_BEGIN("rsi de ema");

Buy_rsi = EMA(RSI(5),4)> EMA(RSI(5),13);
Sell_rsi= EMA(RSI(5),13) >EMA(RSI(5),4);

Buy = Buy_guppy;//Buy_rsi  AND Buy_guppy; //AND Buy_stochk;
Sell = sell_guppy;//sell_rsi AND sell_guppy; //AND SELL_stochk;
Buy = ExRem(Buy,Sell);
Sell = ExRem(Sell,Buy);
//PlotShapes(Buy*shapeSmallUpTriangle,colorRed);
//PlotShapes(Sell*shapeSmallDownTriangle,colorRed);



_SECTION_END();

_SECTION_BEGIN("Tops and bottom");

pd = Param("Periods",13,5,144,1);
pds = 2*pd-1;//     (Adjustment for Wilders MA)
aa = Close-Ref(Close,-1);
uu = EMA(Max(0,aa),pds);
dd=  EMA((Max(0,0-aa)),pds);

rf = IIf(C>2,1000,10000);

c1 = Param("Upper Level",70,50,90,1);
qq1 =100/(100-c1)-1;
ff1 = qq1*dd-uu;
ff2 = ff1/qq1;
f1 = Max(ff1,ff2);
UL = Close + f1*(pds-1)/2;
UL = IIf(UL>C,floor(UL*rf),ceil(UL*rf))/rf;

c2 = Param("Equilibrium",50,50,50,0);
qq2 =100/(100-c2)-1;// [=1]
ff = dd-uu;
MM = Close + ff*(pds-1)/2;
MM = IIf(MM>C,floor(MM*rf),ceil(MM*rf))/rf;

c3 = Param("Lower Level",30,10,50,1);
qq3 =100/(100-c3)-1;
ff1 = qq3*dd-uu;
ff2 = ff1/qq3;
f3 = Min(ff1,ff2);
LL = Close + f3*(pds-1)/2;
LL = IIf(LL>C,floor(LL*rf),ceil(LL*rf))/rf;

band = Param("band width",4,0,15,0.25);
mmu = MM+band;
mmd = MM-band;


X=Cross( C,LL);
Y=Cross(UL,C);

Buy1= X ;
Sell1= Y ;

PlotShapes(shapeCircle*Buy1,colorRed,0,L,-15);
PlotShapes(shapeCircle*Sell1,colorGreen,0,H,-15);

Filter=Buy1 OR Sell1 ;
AddTextColumn(FullName(),"Name");
AddColumn(Buy1,"Buy");
AddColumn(Sell1,"sell");


dist = 1.5*ATR(10);

for( i = 0; i < BarCount; i++ )
{

if( Buy_guppy[i] ) PlotText( "Buy @ \n"+C[i] , i, L[ i ]-dist[i], colorBlack,colorGreen );
if( Sell_guppy[i] ) PlotText( "Sell@ \n"+C[i], i, H[ i ]+dist[i], colorBlack, colorRed );
//if( Buy[i] ) PlotText( "B" , i, L[ i ]-dist[i], colorBlack,colorGreen );
//if( Sell[i] ) PlotText( "S" , i, H[ i ]+dist[i], colorBlack, colorRed );
if( Sell1[i] ) PlotText( "Top" , i, H[ i ]+dist[i], colorGreen, colorBlack );
if( Buy1[i] ) PlotText( "Bottom", i, L[ i ]-dist[i], colorRed, colorBlack );


}
//PlotShapes( Buy * shapeUpArrow + Sell * shapeDownArrow, IIf( Buy, colorYellow, colorYellow ) );
//PlotShapes( Buy * shapeSmallUpTriangle + Sell * shapeSmallDownTriangle, IIf( Buy, colorGreen, colorRed ) );

PlotShapes(IIf(Buy, shapeSquare, shapeNone),colorGreen, 0, L, Offset=-40);
PlotShapes(IIf(Buy, shapeSquare, shapeNone),colorLime, 0,L, Offset=-50);
PlotShapes(IIf(Buy, shapeUpArrow, shapeNone),colorWhite, 0,L, Offset=-45);
PlotShapes(IIf(Sell, shapeSquare, shapeNone),colorRed, 0, H, Offset=40);
PlotShapes(IIf(Sell, shapeSquare, shapeNone),colorOrange, 0,H, Offset=50);
PlotShapes(IIf(Sell, shapeDownArrow, shapeNone),colorWhite, 0,H, Offset=-45);

_SECTION_END();
SellPrice=ValueWhen(Sell_guppy,C,1);
BuyPrice=ValueWhen(Buy_guppy,C,1);
Long=Flip(Buy_guppy,Sell_guppy);
Shrt=Flip(Sell_guppy,Buy_guppy );

_SECTION_BEGIN("Pivot calc");

TimeFrameSet( in15Minute*2 );
DH=Ref(H,-1);
DL=Ref(L,-1);
DC=Ref(C,-1);


pd = ( DH+ DL + DC )/3;
sd1 = (2*pd)-DH;
sd2 = pd -(DH - DL);
sd3 = Sd1 - (DH-DL);
rd1 = (2*pd)-DL;
rd2 = pd +(DH -DL);
rd3 = rd1 +(DH-DL);

TimeFrameRestore();

_SECTION_END();


Title =
EncodeColor(colorWhite)+ "" + " - " +  Name() + " - " + EncodeColor(colorRed)+ Interval(2)
+ EncodeColor(colorWhite) +  "  - " + Date() +" - "
+"\n"

+EncodeColor(colorYellow) +"Op-"+O+"  "+"Hi-"+H+"  "+"Lo-"+L+"  "+ "Cl-"+C+"  "+ "Vol= "+ WriteVal(V)
//+ WriteIf ((e3>e45) ,EncodeColor(colorLime)+ "      Direction : LONG",EncodeColor(colorRed)+"      Direction : SHORT")
+"\n"
+ WriteIf (Sell_guppy , " EXIT LONG / Reverse Signal at "+C+"\n","")
+ WriteIf (Buy_guppy , " EXIT SHORT / Reverse Signal at "+C+"\n","")

+WriteIf(Sell_guppy , "Total Profit / Loss for the Last Trade Rs."+(C-BuyPrice)+"","")+
WriteIf(Buy_guppy  , "Total Profit / Loss for the Last trade Rs."+(SellPrice-C)+"","")+
WriteIf(Long AND NOT Buy_guppy,EncodeColor(colorLime)+  "Trade : Long - Entry price Rs."+(BuyPrice)+" Tgt : "+UL,"")+
WriteIf(shrt AND NOT Sell_guppy,EncodeColor(colorRed)+ "Trade : Short - Entry price Rs."+(SellPrice)+" Tgt : "+LL,"")+"\n"+
WriteIf(Long AND NOT Buy_guppy, "Current Profit / Loss Rs."+(C-BuyPrice)+"","")+
WriteIf(shrt AND NOT Sell_guppy, "Current Profit / Loss Rs."+(SellPrice-C)+"","")
+ EncodeColor(colorGreen)+   "\n R3 : "+ EncodeColor(colorWhite)+RD3
+ EncodeColor(colorGreen)+   "\n R2 : "+ EncodeColor(colorWhite)+RD2
+ EncodeColor(colorGreen)+   "\n R1 : "+ EncodeColor(colorWhite)+RD1 + EncodeColor(colorGreen)+  "     UP TGT   : "+ EncodeColor(colorWhite)+UL
+ EncodeColor(colorBlue)+   "\n Pivot : "+ EncodeColor(colorWhite)+pd+ EncodeColor(colorBlue)+   "     MIDPOINT : "+ EncodeColor(colorWhite)+MM
+ EncodeColor(colorRed)+   "\n S1 : "+ EncodeColor(colorWhite)+SD1   + EncodeColor(colorRed)+    "     BOT TGT  : "+ EncodeColor(colorWhite)+LL
+ EncodeColor(colorRed)+   "\n S2 : "+ EncodeColor(colorWhite)+SD2
+ EncodeColor(colorRed)+   "\n S3 : "+ EncodeColor(colorWhite)+SD3
;
