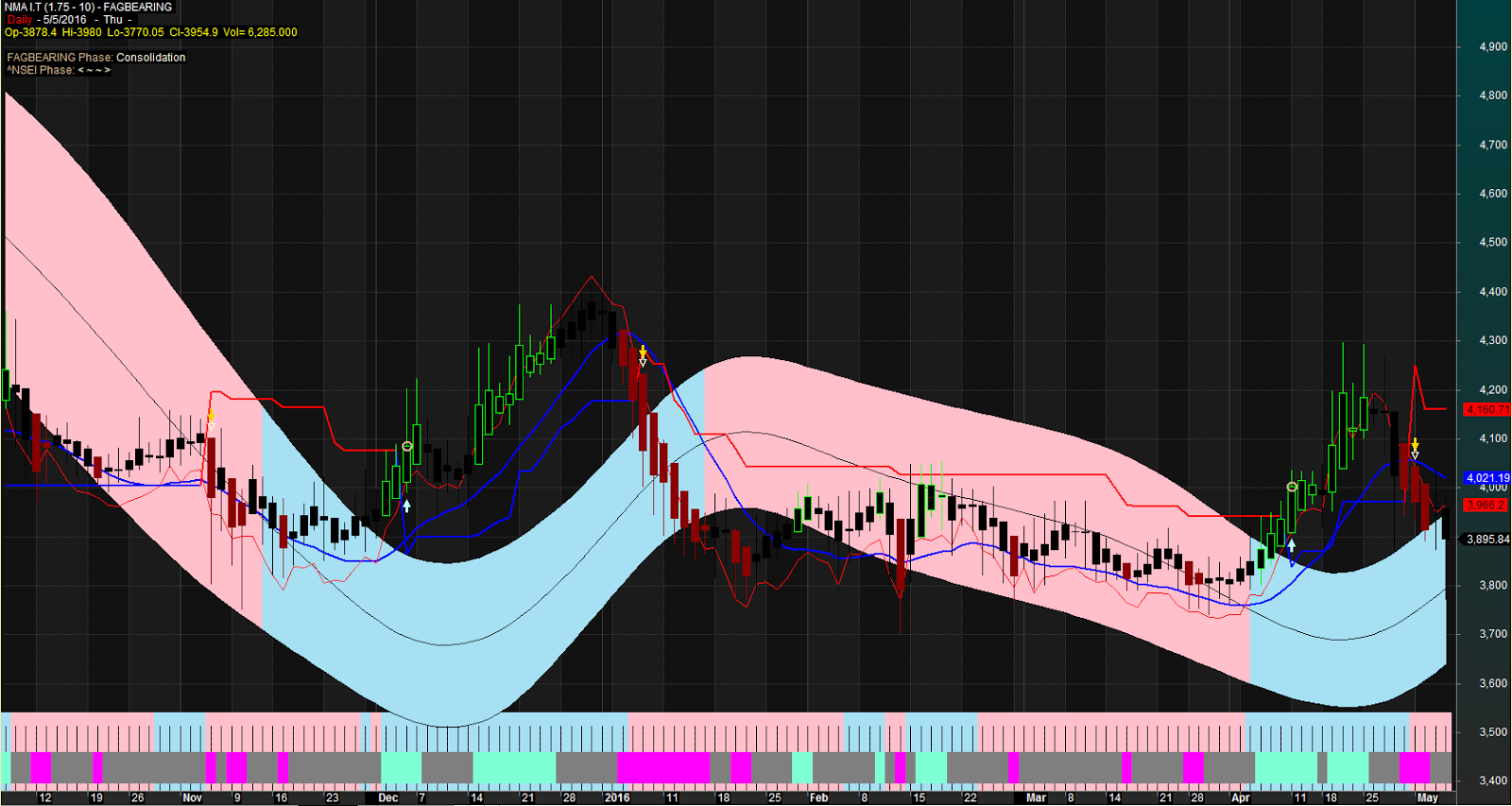

Multiple Major Support Resistance Trading


_SECTION_BEGIN("graph");
SetChartOptions(0,chartShowArrows|chartShowDates);
gxs=Param("GRAPH spaceing",10,5,50,5);
GraphXSpace = gxs;
strWeekday = StrMid("SunMonTueWedThuFriSat", SelectedValue(DayOfWeek())*3,3);
 _SECTION_END();
_SECTION_BEGIN("NMA mkm110709");
HaClose=(O+H+L+C)/4;
HaOpen = AMA( Ref( HaClose,  -1 ),  0.5 );
HaHigh = Max( H,  Max( HaClose,  HaOpen ) );
HaLow = Min( L,  Min( HaClose,  HaOpen ) );
Candletype=ParamList("Candle Type","Candle|Haikin",1);
UpCandle = ParamColor("Up Color", colorBrightGreen );
DownCandle = ParamColor("Down Color", colorDarkRed );
Consolidation = ParamColor("Consolidation", colorBlack );
if(Candletype=="Haikin")
{
BG=HHV(LLV(HALow,4)+ATR(4),8);
BR=LLV(HHV(HAHigh,4)-ATR(4),8);
MYcolor = IIf(HAClose>BG ,UpCandle,IIf(HAClose < BR,DownCandle,Consolidation));
PlotOHLC( HaOpen, HaHigh, HaLow, HaClose, "" + Name(), mycolor, styleCandle |styleThick );
Com=("\n "+Name()+" Phase: ")+
WriteIf(HAClose>BG,EncodeColor(colorLime)+"+Up",
WriteIf(HAClose<BR,EncodeColor(colorRed)+"-Down",EncodeColor(colorLightYellow)+"Consolidation"));
}
else if(Candletype=="Candle")
{
BG2=HHV(LLV(Low,4)+ATR(4),8);
BR2=LLV(HHV(High,4)-ATR(4),8);
Candlecolor = IIf(Close>BG2 ,UpCandle,IIf(Close < BR2,DownCandle,Consolidation));
SetBarFillColor( IIf(O <C, colorSeaGreen,colorOrange) );
Plot( Close, "Price", CandleColor, styleCandle );
Com=("\n "+Name()+" Phase: ")+
WriteIf(C>BG2,EncodeColor(colorLime)+"+Up",
WriteIf(C<BR2,EncodeColor(colorRed)+"-Down",EncodeColor(colorLightYellow)+"Consolidation"));
}
k =  Optimize("K",Param("K",1.75,1,5,0.25),1,5,0.25); //2.5 AS PER TT 5 MIN
Per= Optimize("atr",Param("atr",10,3,30,1),3,30,1); //17     ''   "   "  "    "
j=HaClose;
nm= (H-L);
rfsctor = WMA(nm, PER);
revers = K * rfsctor;
Trend = 1;
NW[0] = 0;
for(i = 1; i < BarCount; i++)
{
 if(Trend[i-1] == 1)
 {
  if(j[i] < NW[i-1])
  {
   Trend[i] = -1;
   NW[i] = j[i] + Revers[i];
  }
  else
  {
   Trend[i] = 1;
   if((j[i] - Revers[i]) > NW[i-1])
   {
    NW[i] = j[i] - Revers[i];
   }
   else
   {
    NW[i] = NW[i-1];
   }
  }
 }
 if(Trend[i-1] == -1)
 {
  if(j[i] > NW[i-1])
  {
   Trend[i] = 1;
   NW[i] = j[i] - Revers[i];
  }
  else
  {
   Trend[i] = -1;
   if((j[i] + Revers[i]) < NW[i-1])
   {
    NW[i] = j[i] + Revers[i];
   }
   else
   {
    NW[i] = NW[i-1];
   }
  }
 }
}

Plot(NW, "", IIf(Trend == 1, 6, 4), 4);

//---------------trading  -------------

Buy=Cross(j,nw);
Short=Cross(nw,j);
Sell=Cross(nw,j);
Cover=Cross(j,nw);
Buy=ExRem(Buy,Sell);
Sell=ExRem(Sell,Buy);
Short=ExRem(Short,Cover);
Cover=ExRem(Cover,Short);
PlotShapes(IIf(Buy, shapeUpArrow, shapeNone),colorSkyblue, 0,haLow,-15);
PlotShapes(IIf(Sell, shapeHollowDownArrow, shapeNone),colorLightYellow, 0,hahigh,-15);
PlotShapes(IIf(Cover, shapeHollowCircle, shapeNone),colorTan, 0,haclose,0);
PlotShapes(IIf(Short, shapeDownArrow, shapeNone),colorGold, 0,hahigh,-25);
//-----------end--------------
Long=Flip(Buy,Sell OR Cover);
Shrt=Flip(Sell,Buy OR Cover);
NOTrade= NOT (Long OR shrt);
BuyPrice=ValueWhen(Buy,C);
SellPrice=ValueWhen(Sell,C);
ShortPrice=ValueWhen(Short,C);
CoverPrice=ValueWhen(Cover,C);
_SECTION_END();
_SECTION_BEGIN("foreign NMA");
Vr=ParamList("Index",List = "^NSEI,^NSEBANK,RELIANCE.NS,SBIN.NS,EURUSD,XAUUSD",0);
SetForeign(Vr);
HaC =(O+H+L+C)/4;
HaO = AMA( Ref( HaC, -1 ), 0.5 );
HaH = Max( H, Max( HaC, HaO) );
HaL = Min( L, Min( HaC, HaO) );
BG3=HHV(LLV(HaL,4)+ATR(4),8);
BR3=LLV(HHV(HaH ,4)-ATR(4),8);
co = IIf(Hac>BG3 ,colorAqua,IIf(Hac < BR3,colorCustom12,colorGrey50));
Plot(4, "", Co,styleArea+styleOwnScale | styleNoLabel, -1, 100);
Comm2=("\n "+Vr+" Phase: ")+
WriteIf(Hac>BG3,EncodeColor(colorLime)+"+Up",
WriteIf(Hac<BR3,EncodeColor(colorRed)+"-Down",EncodeColor(colorLightYellow)+"< ~ ~ >"));
RestorePriceArrays();
_SECTION_END();
grid_day = IIf(Day()!=Ref(Day(),-1),1,0);
Plot(grid_day,"",colorDarkGrey,styleHistogram|styleDashed|styleNoLabel|styleOwnScale);
//=================TITLE================================================================================================
_SECTION_BEGIN("Title");
if( Status("action") == actionIndicator )
(
Title = EncodeColor(colorWhite)+ "NMA I.T ("+k+" - "+per+")" + " - " +  Name() + " \n " + EncodeColor(colorRed)+ Interval(2) + EncodeColor(colorWhite) +
 "  - " + Date() +"   -  "+ strWeekday +"  -  "+"\n" +EncodeColor(colorYellow) +"Op-"+O+"  "+"Hi-"+H+"  "+"Lo-"+L+"  "+
"Cl-"+C+"  "+ "Vol= "+ WriteVal(V)+"\n"+
EncodeColor(colorLime)+
WriteIf (Buy AND Ref(shrt,-1), " GO LONG / Reverse Signal at "+C+"  ","")+
WriteIf (Buy AND Ref(NOTrade,-1), " GO LONG at "+C+"  ","")+EncodeColor(colorRed)+
WriteIf (Sell AND Ref(NOTrade,-1), " GO Short at "+C+"  ","")+
WriteIf (Sell AND Ref(Long,-1), " EXIT LONG / Reverse Signal at "+C+"  ","")+
WriteIf (Cover, " cover "+C+"  ","")+
EncodeColor(colorTan)+ Com+EncodeColor(colorTan)+Comm2);
_SECTION_END();
_SECTION_BEGIN("Background text");
C11=ParamColor("up panel",colorDarkOliveGreen );
C12=ParamColor("dn panel",colorDarkGrey );
C13=Param("fonts",20,10,30,1 );
C14=Param("left-right",2.1,1.0,5.0,0.1 );
C15=Param("up-down",12,1,20,1 );
ab=Param("test Color contrast",0.5,0,5,0.1 );
Miny = Status("axisminy");
Maxy = Status("axismaxy");
lvb = Status("lastvisiblebar");
fvb = Status("firstvisiblebar");
pxwidth = Status("pxwidth");
pxheight = Status("pxheight");
GfxSetBkMode( 0 );
GfxSetOverlayMode(1);
GfxGradientRect(0,0,pxwidth, pxheight, C11, C12 );
GfxSelectFont("Tahoma", Status("pxheight")/C13 );
GfxSetTextAlign( 6 );
//GfxSetTextColor( ColorBlend( colorPaleBlue, C13, ab  ));
GfxTextOut( Name(), Status("pxwidth")/C14, Status("pxheight")/C15 );
GfxSelectFont("Tahoma", Status("pxheight")/C13*0.5 );
GfxTextOut( "NMA", Status("pxwidth")/C14, Status("pxheight")/C15*2.5 );
GfxSelectFont("Tahoma", Status("pxheight")/C13*0.5 );
GfxTextOut( " Karthik Marar", Status("pxwidth")/C14, Status("pxheight")/C15*4 );
GfxSelectFont("MS Sans Serif", 10, 500, False, False, 0);
GfxTextOut(""+Vr+"---cas67", Status("pxwidth")/1.08, Status("pxheight")/C15*11.1 );
//axisarea = 56; // may need adjustment if you are using non-default font for axis

























_SECTION_BEGIN("ABKPTrendBias2");
/* TSKPTrendBias with TSKPSEB */
parmTBStyle = ParamStyle("TB Style", styleLine, maskAll);
parmTBColor = ParamColor("TB", colorRed);
parmTBSlowStyle = ParamStyle("TB Slow Style", styleLine | styleThick, maskAll);
parmTBSlowColor = ParamColor("TB Slow", colorBlue);
dummy =  E_TSKPTRENDBIAS(High,Low,Close);
KPTB = tskp_sb;
KPTBSlow = tskp_tbxavg;
Plot(KPTB, "TB", parmTBColor, parmTBStyle);
Plot(KPTBSlow, "TBSlow", parmTBSlowColor, parmTBSlowStyle);

/* Standard Error Bands */
// user parameters
Periods = Param("Standard Error", 80, 3, 200, 1);
Smooth  = Param("Smooth",14,2,100,1);
parmMBColor = ParamColor("Color MB",colorBlack);
parmMBStyle = ParamStyle("Style MB", style=styleDashed | styleNoLabel, Mask=maskAll );
parmUBColor = ParamColor("Color UB",colorBlack);
parmUBStyle = ParamStyle("Style UB", style=styleLine | styleNoLabel, Mask=maskAll );
parmLBColor = ParamColor("Color LB",colorBlack);
parmLBStyle = ParamStyle("Style LB", style=styleLine | styleNoLabel, Mask=maskAll );
parmToneColorUp = ParamColor("Tone Color Up", ColorRGB(167, 224, 243) );
parmToneColorDn = ParamColor("Tone Color Dn", ColorRGB(255, 192, 203) );
parmTrendColorUp = ParamColor("Trend Color Up", ColorRGB(167, 224, 243) );
parmTrendColorDn = ParamColor("Trend Color Dn", ColorRGB(255, 192, 203) );

// calculations
LRCurve = LinearReg( KPTB, periods );
MALRCurve  = MA(LRCurve, Smooth);
SEValue = StdErr(KPTB, periods );
SErrorAvg =  MA(SEValue, Smooth);

LowerBand = MALRCurve - SErrorAvg ;
UpperBand = MALRCurve + SErrorAvg ;

Plot( MALRCurve , "MidBand", parmMBColor , parmMBStyle);
Plot( UpperBand , "UpperBand",parmUBColor ,parmUBStyle );
Plot( LowerBand , "LowerBand", parmLBColor , parmLBStyle);
PlotOHLC( UpperBand, UpperBand, LowerBand, LowerBand, "Band", IIf(KPTBSlow >= MALRCurve, parmTrendColorUp, parmToneColorDn) , styleCloud | styleNoLabel);
//plot Tone
RibbonSize = Param("Ribbon Size", 1 , 0.5, 10, 0.5);

Plot( RibbonSize, "Tone", IIf(KPTB > KPTBSlow, parmToneColorUp, parmToneColorDn) , styleArea |  styleNoLabel | styleOwnScale , 0, 10);
_SECTION_END();
