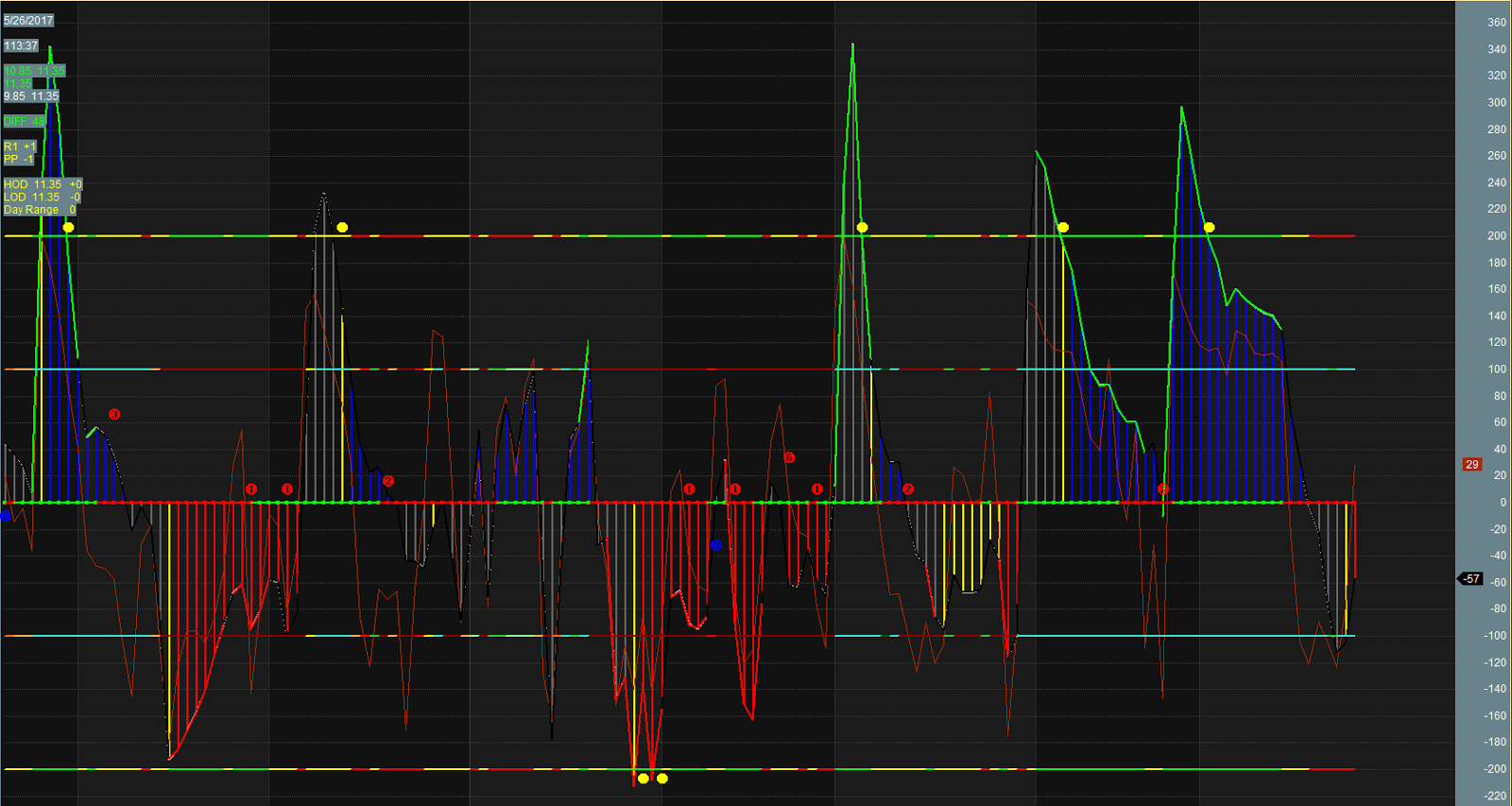

Click Image To Enlarge. Please Rate And Comment.

Modified CCI With Multiple Levels

_SECTION_BEGIN("Modified CCI With Multiple Levels");


TTMperiod = 6;
Low_ma = EMA(L, TTMperiod);
High_ma = EMA(H, TTMperiod);
Low_third = (High_ma - Low_ma) / 3 + Low_ma;
High_third = 2 * (High_ma - Low_ma) / 3 + Low_ma;
tempnum = Now( 4 ) - TimeNum();
TimeRem = Interval() - ((int(tempnum[BarCount - 1] / 100) * 60) + (tempnum[BarCount - 1] - int(tempnum[BarCount - 1] / 100) * 100));
if (TimeRem[BarCount - 1] < 0) TimeRem = 0;
MinuteVar = int(TimeRem / 60);
SecondsVar = int(frac(TimeRem / 60) * 60);
if (TimeRem[BarCount - 1] > 60)
{
TitleTimeRem = EncodeColor(colorWhite) + MinuteVar + ":" + WriteIf(SecondsVar > 9, "", "0") +  SecondsVar;
}
else if (TimeRem[BarCount - 1] > 20)
{
TitleTimeRem =  EncodeColor(colorYellow) + MinuteVar + ":" + WriteIf(SecondsVar > 9, "", "0") + SecondsVar;
}
else
{
TitleTimeRem = EncodeColor(colorRed) + MinuteVar + ":" + WriteIf(SecondsVar > 9, "", "0") +  SecondsVar;
}

// Background color

SetChartBkColor(ParamColor("Panel color ",colorPaleBlue));

// CCI colors

//zcolor= ParamColor("WCCI color",colorBlack);

//////////////Addition SPM//////////////////////
//zcolor=IIf(SW ==2,IIf(angle_EMA34 >=5,colorGreen,IIf(angle_EMA34 <-5,colorRed,colorBlack);
//zColor = IIf(angle_EMA34 >=5 AND SW ==2,colorBrightGreen,IIf(angle_EMA34 <-5 AND SW ==2,colorRed,colorWhite));
//////////////////////////////////////////////////////
z6color= ParamColor("TCCI color",colorBrown);
patterncolor= ParamColor("Pattern trace color",colorWhite);

// CCI periods

zperiod=Param("WCCI period",14,0,100);
z = CCI(zperiod);
z6period=Param("TCCI period",6,0,1000);
z6 = CCI(z6period);

// Tic/PIP value

TicMult= Param("Tic multiplier(ER2=10,YM=1,ES=4,FOREX=1)",1,0,1000000);
TicDiv= Param("Tic or PIP value(ER2=0.1,YM=1,FOREX=1)",1,0,1000000);

// Rangebar interval

rbint= Param("Rangebar interval:(YM=25.0,AB=1.5,NQ=3.75,ES=3.0)",1.0,0.25,1000000);

// Rangebar counter

rbcounter= round(((rbint-(H-L))) * ticmult);
rbcounterpercent= round((rbcounter/(rbint * ticmult))*100);

// Timer/counter title

timercode= Param("Timer:(minutes=1,rangebar=2)",1,1,2);
timetitle= WriteIf(timercode==1,TitleTimeRem, EncodeColor(colorWhite) + "Countdown  " + rbcounter + "  (" + rbcounterpercent + "%)");

// Spread

spread= Param("Spread (included in stop)",0,0,1000000);

// Stop value

stopval= Param("Stop above/below entry bar",2,0,1000000);

// Plot grids

PlotTheGrids = ParamToggle("Plot grids","No|Yes",0);
if (PlotTheGrids ==1)
{
PlotGrid(0);
PlotGrid(-100);
PlotGrid(100);
PlotGrid(-200);
PlotGrid(200);
}

// Angle variables

PI = atan(1.00) * 4;
periods = 30;
HighHigh = HHV(H, periods);
LowLow = LLV(L, periods);
range = 25 / (HighHigh - LowLow) * LowLow;

// EMA34 Angle

EMA34 = EMA(C,34);
x1_EMA34 = 0;
x2_EMA34 = 1;
y1_EMA34 = 0;
y2_EMA34 = (Ref(EMA34, -1) - EMA34) / Avg * range;
c_EMA34 = sqrt((x2_EMA34 - x1_EMA34)*(x2_EMA34 - x1_EMA34) + (y2_EMA34 - y1_EMA34)*(y2_EMA34 - y1_EMA34));
angle_EMA34 = round(180 * acos((x2_EMA34 - x1_EMA34)/c_EMA34) / PI);
angle_EMA34 = IIf(y2_EMA34 > 0, - angle_EMA34, angle_EMA34);












// LSMA25 Angle

LSMA25 = LinearReg(C, 25 );
x1_LSMA25 = 0;
x2_LSMA25 = 1;
y1_LSMA25 = 0;
y2_LSMA25 = (Ref(LSMA25, -1) - LSMA25) / Avg * range;
c_LSMA25 = sqrt((x2_LSMA25 - x1_LSMA25)*(x2_LSMA25 - x1_LSMA25) + (y2_LSMA25 - y1_LSMA25)*(y2_LSMA25 - y1_LSMA25));
angle_LSMA25 = round(180 * acos((x2_LSMA25 - x1_LSMA25)/c_LSMA25) / PI);
angle_LSMA25 = IIf(y2_LSMA25 > 0, - angle_LSMA25, angle_LSMA25);

// Color the bars for Woodies Trend Following

function Consecutive( array )
{
return BarsSince( NOT( array ) );
}
function Occurrences( array , period )
{
return Sum( array, period );
}
array = z;
HighBars = Consecutive( array > 0 );
LowBars = Consecutive( array < 0 );
UpCondition = BarsSince( HighBars >= 6 AND Occurrences( array > 100 , 5 ) > 0 );
DnCondition = BarsSince( LowBars >= 6 AND Occurrences( array < -100 , 5 ) > 0 );
UpTrend = ( array > 0 ) AND ( UpCondition < DnCondition );
DnTrend = ( array < 0 ) AND ( UpCondition > DnCondition );
TrTrend = ( HighBars >= 5 AND NOT UpTrend ) OR ( LowBars >= 5 AND NOT DnTrend );
Color = IIf( UpTrend, colorBlue, IIf( DnTrend, colorRed, IIf( TrTrend, colorYellow, colorGrey40 ) ) );

// Plot the Mock CZI on the 100s

ColorANGLE_EMA = IIf(angle_EMA34 >=5,colorTurquoise,
IIf(angle_EMA34 <5 AND angle_EMA34 >=3.57,colorDarkGreen,
IIf(angle_EMA34 <3.57 AND angle_EMA34 >=2.14,colorPaleGreen,
IIf(angle_EMA34 <2.14 AND angle_EMA34 >=.71,colorLime,
IIf(angle_EMA34 <=-1*5,colorDarkRed,
IIf(angle_EMA34 >-1*5 AND angle_EMA34 <=-1*3.57,colorRed,
IIf(angle_EMA34 >-1*3.57 AND angle_EMA34 <=-1*2.14,colorOrange,
IIf(angle_EMA34 >-1*2.14 AND angle_EMA34 <=-1*.71,colorLightOrange,colorYellow))))))));
Plot(100,"", ColorANGLE_EMA , styleLine | styleThick | styleNoLabel);
Plot(-100,"", ColorANGLE_EMA , styleLine | styleThick | styleNoLabel);

// Plot the Mock Sidewinder on the 200s

SW = IIf((abs(angle_EMA34) >= 15) AND (abs(angle_EMA34 + angle_LSMA25) >= 50), IIf(angle_LSMA25 > 0, 2, -2),
IIf((abs(angle_EMA34) >= 0) AND (((angle_EMA34 >= 0) AND (angle_LSMA25 >= 0)) OR ((angle_EMA34 <= 0) AND (angle_LSMA25 <= 0))) AND (abs(angle_EMA34 + angle_LSMA25) >= 5), IIf(angle_LSMA25 > 0, 1, -1), 0));
ColorSW = IIf(abs(SW) == 2, colorBrightGreen,
IIf(abs(SW) == 1, colorYellow, colorRed));
Plot(200,"", ColorSW, styleLine | styleThick | styleNoLabel);
Plot(-200,"", ColorSW, styleLine | styleThick | styleNoLabel);


//////////////////SPM MOD/////////////////////////////////
//Plot(100,"", colorBlue , styleLine | styleThick | styleNoLabel);
//Plot(-100,"", colorBlue , styleLine | styleThick | styleNoLabel);
//Plot(200,"", colorBlue, styleLine | styleThick | styleNoLabel);
//Plot(-200,"", colorBlue, styleLine | styleThick | styleNoLabel);

// CCI colors
//zcolor= ParamColor("WCCI color",colorBlack);

////////////// SPM  MOD//////////////////////

zColor = IIf(angle_EMA34 >=5 AND abs(SW) ==2,colorBrightGreen,IIf(angle_EMA34 <-5 AND abs(SW) ==2,colorRed,colorBlack));
//////////////////////////////////////////////////////













// Zero line 25lsma

Plot(0,"", IIf(C > LSMA25,colorBrightGreen,IIf(C < LSMA25,colorRed,colorTeal)), styleDots | styleThick | styleNoLabel);

// CCI Points

diffCode=ParamToggle("Plot CCI diff ","No|Yes",1);
CCipointmove= z-Ref(z,-1);
CCIpointmovetitle= WriteIf(diffcode==1 AND abs(CCipointmove)<15,EncodeColor(colorRed) + "\n"  + "DIFF  " +
abs(round(CCipointmove)) + "\n",WriteIf(diffcode==1 AND abs(CCipointmove)>=15 AND abs(CCipointmove)<20,EncodeColor(colorYellow) + "\n"  + "DIFF  " +
abs(round(CCipointmove)) + "\n",WriteIf(diffcode==1 AND abs(CCIpointmove)>=20,EncodeColor(colorBrightGreen) + "\n"  + "DIFF  " +
abs(round(CCipointmove))+ "\n","")));

// Price Panel

Lastpricetitlehi= WriteIf(H>Ref(H,-1),EncodeColor(colorBrightGreen) + Ref(H,-1) + "  " + H , EncodeColor(colorWhite)+ Ref(H,-1) + "  " + H);
Lastpricetitlelo= WriteIf(L<Ref(L,-1),EncodeColor(colorRed) + Ref(L,-1) + "  " + L , EncodeColor(colorWhite) + Ref(L,-1) + "  " + L);
Closecolor=WriteIf(C==H AND H>Ref(H,-1),EncodeColor(colorBrightGreen),WriteIf(C==L AND L<Ref(L,-1),EncodeColor(colorRed),EncodeColor(colorWhite)));

//Pivot Points Calculations

pivCode=ParamToggle("Plot pivots ","No|Yes",1);
DayH = TimeFrameGetPrice("H", inDaily, -1);
DayL = TimeFrameGetPrice("L", inDaily, -1);
DayC = TimeFrameGetPrice("C", inDaily, -1);
DayO = TimeFrameGetPrice("O", inDaily);
HiDay = TimeFrameGetPrice("H", inDaily);
LoDay = TimeFrameGetPrice("L", inDaily);
PP = (DayH + DayL + DayO + DayO) / 4 ;
R1 = (2 * PP) - DayL;
S1 = (2 * PP) - DayH;
R2 = PP + R1 - S1;
S2 = PP + S1 - R1;
R3 = R2 + (R1 - PP);
S3 = S2 - (PP - S1);
ppvalue= round(abs((C-pp)/ticdiv));
r1value= round(abs((C-r1)/ticdiv));
s1value= round(abs((C-s1)/ticdiv));
r2value= round(abs((C-r2)/ticdiv));
s2value= round(abs((C-s2)/ticdiv));
r3value= round(abs((C-r3)/ticdiv));
s3value= round(abs((C-s3)/ticdiv));
wptitle=  WriteIf(pivCode==1 AND C>=R3, "\n" + EncodeColor(colorYellow)+"R3 " + "-" + (R3value) + "\n" + "\n",
WriteIf(pivCode==1 AND C<=R3 AND C>=R2, "\n" + EncodeColor(colorYellow)+"R3  " + "+" + (R3value) + "\n" +  EncodeColor(colorYellow) + "R2  " + "-" + (R2value) + "\n" + "\n",
WriteIf(pivCode==1 AND C<=R2 AND C>=R1, "\n" + EncodeColor(colorYellow)+"R2  " + "+" + (R2value) + "\n" +  EncodeColor(colorYellow) + "R1  " + "-" + (R1value) + "\n" + "\n",
WriteIf(pivCode==1 AND C<=R1 AND C>=PP, "\n" + EncodeColor(colorYellow)+"R1  " + "+" + (R1value) + "\n" +  EncodeColor(colorYellow) + "PP  " + "-" + (PPvalue) + "\n" + "\n",
WriteIf(pivCode==1 AND C<=PP AND C>=S1, "\n" + EncodeColor(colorYellow)+"PP  " + "+" + (PPvalue) + "\n" +  EncodeColor(colorYellow) + "S1  " + "-" + (S1value) + "\n" + "\n",
WriteIf(pivCode==1 AND C<=S1 AND C>=S2, "\n" + EncodeColor(colorYellow)+"S1  " + "+" + (S1value) + "\n" +  EncodeColor(colorYellow) + "S2  " + "-" + (S2value) + "\n" + "\n",
WriteIf(pivCode==1 AND C<=S2 AND C>=S3, "\n" + EncodeColor(colorYellow)+"S2  " + "+" + (S2value) + "\n" +  EncodeColor(colorYellow) + "S3  " + "-" + (S3value) + "\n" + "\n",
WriteIf(pivCode==1 AND C<=S3, "\n" + EncodeColor(colorYellow)+"S3  " + "+" + (S3value) + "\n"+ "\n",""))))))));

// HOD , LOD, Range

HiDayTitle = WriteIf(pivCode==1,EncodeColor(colorYellow) + "HOD  ","");
HiDayTitle = WriteIf(pivCode==1,HiDayTitle + EncodeColor(colorYellow) + HiDay + "   +" + round(abs((HiDay-C)/ticdiv)) + "\n","");
LoDayTitle = WriteIf(pivCode==1,EncodeColor(colorYellow) + "LOD  ","");
LoDayTitle = WriteIf(pivCode==1,LoDayTitle + EncodeColor(colorYellow) + LoDay + "    -" + round(abs((C-LoDay)/ticdiv)) + "\n"," ");
RangeTitle1 =WriteIf(pivCode==1,EncodeColor(colorYellow) + "Day Range    " + EncodeColor(colorYellow) + StrToNum(NumToStr(round((HiDay - LoDay)/ticdiv), 4.4)) + "\n","");

// Pattern codes

Cziquallong= ((angle_EMA34>=5 OR Ref(angle_EMA34,-1)>=5) AND Ref(angle_EMA34,-2)>=5) OR (Ref(angle_EMA34,-1)>=5 AND angle_EMA34>=5);
Cziqualshort= ((angle_EMA34<=-5 OR Ref(angle_EMA34,-1)<=-5) AND Ref(angle_EMA34,-2)<=-5) OR (Ref(angle_EMA34,-1)<=-5 AND angle_EMA34<=-5);

// ZLR Long

Linex_long=Ref(z,-1)>100 AND z<100;
barsfromline_long=BarsSince(Linex_long);
CCIhook_long=z>Ref(z,-1) AND Ref(z,-1)>-100 AND Ref(z,-1)<Ref(z,-2) AND Ref(z,-2)>-100 AND z>0;
SW_trendinglong= sw==1 OR sw==2;
zlrlong1=  abs(CCipointmove)>=15 AND SW_trendinglong AND z<120 AND barsfromline_long<=10 AND CCIhook_long AND UpTrend;
zlrnextl= z<120 AND barsfromline_long<10 AND CCIhook_long AND UpTrend;
zlrlong= Cziquallong AND (zlrlong1 OR ( NOT Ref(zlrlong1,-1) AND Ref(zlrnextl,-1) AND abs(CCipointmove)>=15 AND z>=Ref(z,-1) AND SW_trendinglong AND z<120 AND UpTrend));

// ZLR Short

Linex_short=Ref(z,-1)<=-100 AND z>=-100;
barsfromline_short=BarsSince(Linex_short);
CCIhook_short=z<Ref(z,-1) AND Ref(z,-1)<100 AND Ref(z,-1)>Ref(z,-2) AND Ref(z,-2)<100 AND z<0;
SW_trendingshort= sw==-1 OR sw==-2;
zlrshort1= abs(CCipointmove)>=15 AND SW_trendingshort AND z>-120 AND barsfromline_short<=10 AND CCIhook_short AND DnTrend;
zlrnexts=  z>-120 AND barsfromline_short<10 AND CCIhook_short AND DnTrend;
zlrshort= Cziqualshort AND (zlrshort1 OR (NOT Ref(zlrshort1,-1) AND Ref(zlrnexts,-1) AND abs(CCipointmove)>=15 AND z<=Ref(z,-1) AND SW_trendingshort AND z>-120 AND DnTrend));

// Famir Long

FamirLinex_long=Ref(z,-1)<=-100 AND z>-100;
Famir_barsfromline_long=BarsSince(FamirLinex_long);
Famir_pivotlong= (Ref(z,-2)>Ref(z,-1)AND Ref(z,-1)>=-55 AND Ref(z,-2)>=-55) OR (Ref(z,-3)>Ref(z,-1) AND Ref(z,-1)>=-55 AND Ref(z,-2)>=-55 AND Ref(z,-3)>=-55)OR (Ref(z,-4)>Ref(z,-1) AND Ref(z,-1)>=-55 AND Ref(z,-2)>=-55 AND Ref(z,-3)>=-55);
Famirhook_long=Famir_pivotlong AND z>Ref(HHV(z,Famir_barsfromline_long),-1) AND (z>=-55 AND z<=55);
Famirlong= Famir_barsfromline_long<10 AND Famirhook_long AND ((DnTrend OR Ref(Dntrend,-BarsSince(z<0))==1) AND NOT UpTrend) AND C>LSMA25;

// Famir Short

FamirLinex_short=Ref(z,-1)>=100 AND z<100;
Famir_barsfromline_short=BarsSince(FamirLinex_short);
Famir_pivotshort= (Ref(z,-2)<Ref(z,-1)AND Ref(z,-1)<=55 AND Ref(z,-2)<=55) OR (Ref(z,-3)<Ref(z,-1)AND Ref(z,-1)<=55 AND Ref(z,-2)<=55 AND Ref(z,-3)<=55) OR (Ref(z,-4)<Ref(z,-1) AND Ref(z,-1)<=55 AND Ref(z,-2)<=55 AND Ref(z,-3)<=55);
Famirhook_short=Famir_pivotshort AND z<Ref(LLV(z,Famir_barsfromline_short),-1) AND (z>=-55 AND z<=55);
Famirshort= Famir_barsfromline_short<10 AND Famirhook_short AND ((UpTrend OR Ref(Uptrend,-BarsSince(z>0))==1) AND NOT DnTrend) AND C<LSMA25;

// HFE

HFEshort=(Ref(z,-1)>200 AND z<200);
HFElong=(Ref(z,-1)<-200 AND z>-200);
HFE= HFEshort OR HFElong;

// VT Long

vtLinex_long=Ref(z,-1)<=-200 AND z>-200;
vt_barsfromline_long=BarsSince(vtLinex_long);
vtlong_A = z<-200;
vtlong_B = Ref(z,-1)<=Ref(z,-2) OR
Ref(z,-2)<=Ref(z,-3) OR
Ref(z,-3)<=Ref(z,-4) OR
Ref(z,-4)<=Ref(z,-5) OR
Ref(z,-5)<=Ref(z,-6) OR
Ref(z,-6)<=Ref(z,-7) OR
Ref(z,-7)<=Ref(z,-8);
vtlong_bs_A = BarsSince(vtlong_A);
vtlong_bs_B = BarsSince(vtlong_b);
Vtlong_bars = vtlong_bs_A>=5 AND vtlong_bs_B<=0;
vt_pivotlong= Vtlong_bars;
swinghibars=BarsSince(z>Ref(HHV(z,vt_barsfromline_long),-1));
vthook_long= vt_pivotlong AND z>Ref(HHV(z,vt_barsfromline_long),-1);
vtlong= z<100 AND vt_barsfromline_long<=11 AND (Ref(HHV(z,vt_barsfromline_long),-1)<0 OR HHV(z,vt_barsfromline_long)<=0) AND vthook_long AND C>Lsma25 AND Ref(swinghibars>=2,-1) AND z>-100;

// VT Short

vtLinex_short=Ref(z,-1)>=200 AND z<200;
vt_barsfromline_short=BarsSince(vtLinex_short);
vtshort_A = z>200 ;
vtshort_B =Ref(z,-1)>=Ref(z,-2) OR
Ref(z,-2)>=Ref(z,-3) OR
Ref(z,-3)>=Ref(z,-4) OR
Ref(z,-4)>=Ref(z,-5) OR
Ref(z,-5)>=Ref(z,-6) OR
Ref(z,-6)>=Ref(z,-7) OR
Ref(z,-7)>=Ref(z,-8);
vtshort_bs_A = BarsSince(vtshort_A);
vtshort_bs_B = BarsSince(vtshort_b);
Vtshort_bars = vtshort_bs_A>=5 AND vtshort_bs_B<=0;
vt_pivotshort= Vtshort_bars;
swinglowbars= BarsSince(z<Ref(LLV(z,vt_barsfromline_short),-1));
vthook_short= vt_pivotshort AND z<Ref(LLV(z,vt_barsfromline_short),-1);
vtshort= z>-100 AND vt_barsfromline_short<=11 AND (Ref(LLV(z,vt_barsfromline_short),-1)>0 OR LLV(z,vt_barsfromline_short)>0) AND vthook_short AND C<Lsma25 AND Ref(swinglowbars>=2,-1) AND z<100;

// GB 100 Long

Linex_longGB=Ref(z,-1)>100 AND z<100;
barsfromline_longGB=BarsSince(Linex_longGB);
CCIhook_longGB= Ref(z,-1)<-100 AND z>-100;
GB100long= z<100 AND barsfromline_longGB<=12 AND Cziquallong AND CCIhook_longGB AND (Ref(UpTrend,-BarsSince(z>0))==1 AND NOT DnTrend);

// GB100 Short

Linex_shortGB=Ref(z,-1)<-100 AND z>-100;
barsfromline_shortGB=BarsSince(Linex_shortGB);
CCIhook_shortGB=Ref(z,-1)>100 AND z<100;
Gb100short= z>-100 AND barsfromline_shortGB<=12 AND Cziqualshort AND CCIhook_shortGB AND (Ref(DnTrend,-BarsSince(z<0))==1 AND NOT UpTrend);

// TT Long

Minuszero=BarsSince(Ref(z,-1)>0) + 1;
TTCCIhook_long= z>Ref(z,-1) AND z>0;
TTlong= Cziquallong AND z<100 AND Ref(UpTrend,-Minuszero)==1 AND LLV(Ref(z,-1),BarsSince(Ref(z,-1)>=100))>-100 AND HHV(Ref(z,-1),BarsSince(Ref(z,-1)< 0))>=100 AND TTCCIhook_long AND Ref(LowBars,-1)>=4 AND Ref(LowBars,-1)<=9;

// TT Short

Pluszero=BarsSince(Ref(z,-1)<0) + 1;
TTCCIhook_short=z<Ref(z,-1) AND z<0;
TTshort= Cziqualshort AND z>-100 AND Ref(DnTrend,-Pluszero)==1 AND HHV(Ref(z,-1),BarsSince(Ref(z,-1)<=-100))<100 AND LLV(Ref(z,-1),BarsSince(Ref(z,-1)>0))<=-100 AND  TTCCIhook_short AND Ref(HighBars,-1)>=4 AND Ref(HighBars,-1)<=9;

// PT Long

Phook_long1=  Ref(z,-1)>=Ref(z,-2) AND Ref(z,-2)<Ref(z,-3) AND Ref(z,-3)>0;
Phook_long2= Ref(z,-3)>-100 AND Ref(z,-1)>Ref(z,-2) AND Ref(z,-2)<Ref(z,-3) AND Ref(z,-3)<Ref(z,-4) AND Ref(z,-4)>0;
Ptlong= Cziquallong AND (Phook_long1 OR Phook_long2) AND (z>0 AND Ref(z,-1)<0 AND z<120 AND Ref(z,-1)>-100 AND Ref(z,-2)>-100 AND z>Ref(z,-1) AND UpTrend);

// PT Short

Phook_short1=  Ref(z,-1)<=Ref(z,-2) AND Ref(z,-2)>Ref(z,-3) AND Ref(z,-3)<0;
Phook_short2= Ref(z,-3)<100 AND Ref(z,-1)<Ref(z,-2) AND Ref(z,-2)>Ref(z,-3) AND Ref(z,-3)> Ref(z,-4) AND Ref(z,-4)<0;
Ptshort= Cziqualshort AND (Phook_short1 OR Phook_short2) AND (z<0 AND Ref(z,-1)>0 AND z>-120 AND Ref(z,-1)<100 AND Ref(z,-2)<100 AND z<Ref(z,-1) AND DnTrend);

// Signal Title

PatCode1=ParamToggle("Plot ZLR (1)","No|Yes",1);
PatCode2=ParamToggle("Plot FAMIR (2)","No|Yes",1);
PatCode3=ParamToggle("Plot VT (3)","No|Yes",1);
PatCode4=ParamToggle("Plot GB100 (4)","No|Yes",1);
PatCode5=ParamToggle("Plot TT (5)","No|Yes",1);
PatCode6=ParamToggle("Plot PT (6)","No|Yes",1);
PatCode7=ParamToggle("Plot HFE","No|Yes",1);

Signaltitle= WriteIf(PatCode1==1 AND zlrlong,EncodeColor(colorDarkRed) + "\n" + "*** ALERT -- ZLR ***" + "\n",
WriteIf(PatCode1==1 AND zlrshort,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- ZLR ***" + "\n",
WriteIf(PatCode2==1 AND Famirshort,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- FAMIR ***" + "\n",
WriteIf(PatCode2==1 AND Famirlong,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- FAMIR ***" + "\n",
WriteIf(PatCode3==1 AND VTlong AND NOT famirlong,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- VT ***" + "\n",
WriteIf(PatCode3==1 AND VTshort AND NOT famirshort,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- VT ***" + "\n",
WriteIf(PatCode4==1 AND GB100long,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- GB100 ***" + "\n",
WriteIf(PatCode4==1 AND Gb100short,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- GB100 ***" + "\n",
WriteIf(PatCode5==1 AND TTLong,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- TT ***" + "\n",
WriteIf(PatCode5==1 AND TTShort,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- TT ***" + "\n",
WriteIf(PatCode6==1 AND PTLong,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- PT ***" + "\n",
WriteIf(PatCode6==1 AND PTShort,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- PT ***" + "\n",
WriteIf(PatCode7==1 AND HFE,EncodeColor(colorDarkRed) + "\n" +  "*** ALERT -- HFE ***" + "\n","")))))))))))));

// Pattern signal codes

PlotShapes(IIf(PatCode1==1 AND zlrlong,shapeDigit1,shapeNone),colorBlue,0,Min(z,0),-15);
PlotShapes(IIf(PatCode1==1 AND zlrshort,shapeDigit1+ shapePositionAbove,shapeNone),colorRed,0,Max(z,0),-15);
PlotShapes(IIf(PatCode2==1 AND famirlong,shapeDigit2,shapeNone),colorBlue,0,Min(z,0),-15);
PlotShapes(IIf(PatCode2==1 AND famirShort ,shapeDigit2+ shapePositionAbove,shapeNone),colorRed,0,Max(z,0),-15) ;
PlotShapes(IIf(PatCode3==1 AND vtlong AND NOT famirlong,shapeDigit3,shapeNone),colorBlue,0,Min(z,0),-47);
PlotShapes(IIf(PatCode3==1 AND vtshort AND NOT famirshort,shapeDigit3+ shapePositionAbove,shapeNone),colorRed,0,Max(z,0),-47);
PlotShapes(IIf(PatCode4==1 AND GB100long,shapeDigit4,shapeNone),colorBlue,0,Min(z,0),-60);
PlotShapes(IIf(PatCode4==1 AND GB100short,shapeDigit4+ shapePositionAbove,shapeNone),colorRed,0,Max(z,0),-60);
PlotShapes(IIf(PatCode5==1 AND ttlong,shapeDigit5,shapeNone),colorBlue,0,Min(z,0),-50);
PlotShapes(IIf(PatCode5==1 AND ttshort,shapeDigit5+ shapePositionAbove,shapeNone),colorRed,0,Max(z,0),-50);
PlotShapes(IIf(PatCode6==1 AND ptlong,shapeDigit6,shapeNone),colorBlue,0,Min(z,0),-50);
PlotShapes(IIf(PatCode6==1 AND ptshort,shapeDigit6+ shapePositionAbove,shapeNone),colorRed,0,Max(z,0),-50);
PlotShapes(IIf(PatCode7==1 AND HFEshort,shapeCircle,shapeNone),IIf(PatCode7==1 AND HFEshort,colorYellow,shapeNone),0,200,10);
PlotShapes(IIf(PatCode7==1 AND HFElong,shapeCircle,shapeNone),IIf(PatCode7==1 AND HFElong,colorYellow,shapeNone),0,-200,-10) ;

// CCI hook Exit
HookExitLong= z<=Ref(z,-1);
HookExitShort= z>=Ref(z,-1);

// 100 Line Cross Exit Conservative
Cross100longC= z<=Ref(z,-1) AND z<100;
Cross100shortC= z>=Ref(z,-1) AND z>-100;

// 100 Line Cross Exit Aggressive
Cross100longA= Ref(z,-1)>100 AND z<100;
Cross100shortA= Ref(z,-1)<-100 AND z>-100;

// Mplay Exit

MplayExitLong= z<Ref(z,-1) AND Ref(z,-1)<Ref(z,-2) AND C<O;
MplayExitShort= z>Ref(z,-1) AND Ref(z,-1)>Ref(z,-2) AND C>O;

// Heikin-Ashi Exit

HaClose =EMA((O+H+L+C)/4,3);
HaOpen = AMA( Ref( HaClose, -1 ), 0.5 );
HaHigh = Max( H, Max( HaClose, HaOpen ) );
HaLow = Min( L, Min( HaClose, HaOpen ) );
HExitConLong=  HaLow < HaOpen;
HExitConShort=  HaHigh > HaOpen;

// Exit code
ExitCode= Param("Exits:Hook=1,100xConservative=2,100xAggressive=3,Mplay=4,H-Ashi=5",1,1,5);
ExitCodeTitleLong= IIf(ExitCode==1,HookExitLong,IIf(Exitcode==2,Cross100longC,IIf(Exitcode==3,Cross100longA,IIf(Exitcode==4,MplayExitLong,IIf(Exitcode==5,HExitConLong,0)))));
ExitCodeTitleShort= IIf(ExitCode==1,HookExitShort,IIf(Exitcode==2,Cross100shortC,IIf(Exitcode==3,Cross100shortA,IIf(Exitcode==4,MplayExitShort,IIf(Exitcode==5,HExitConShort,0)))));
AllPatterns =(zlrlong AND patcode1==1) OR (famirlong AND patcode2==1) OR (Vtlong AND patcode3==1) OR (gb100long AND patcode4==1) OR (ttlong AND patcode5==1) OR (ptlong AND patcode6==1) OR (Hfelong AND patcode7==1)
OR (zlrshort AND patcode1==1) OR (famirshort AND patcode2==1) OR (Vtshort AND patcode3==1) OR (gb100short AND patcode4==1) OR (ttshort AND patcode5==1) OR (ptshort AND patcode6==1) OR (Hfeshort AND patcode7==1);
BuyPattern = (zlrlong AND patcode1==1) OR (famirlong AND patcode2==1) OR (Vtlong AND patcode3==1) OR (gb100long AND patcode4==1) OR (ttlong AND patcode5==1) OR (ptlong AND patcode6==1) OR (Hfelong AND patcode7==1);
SellPattern= ExitCodeTitleLong;
ShortPattern = (zlrshort AND patcode1==1) OR (famirshort AND patcode2==1) OR (Vtshort AND patcode3==1) OR (gb100short AND patcode4==1) OR (ttshort AND patcode5==1) OR (ptshort AND patcode6==1) OR (Hfeshort AND patcode7==1);
CoverPattern = ExitCodeTitleShort;

//Plot Sell/Cover Arrows

Sell1=ExRem(SellPattern,BuyPattern);
Cover1=ExRem(CoverPattern,ShortPattern);
SellCode=ParamToggle("Plot sell/cover arrows ","No|Yes",0);
PlotShapes(IIf(Sell1 AND SellCode==1,shapeHollowDownArrow,shapeNone),colorBlue,0,200,10);
PlotShapes(IIf(Cover1 AND SellCode==1,shapeHollowDownArrow,shapeNone),colorRed,0,200,10);

// Calculate pattern hilites

// Long

AsellL= BuyPattern;
BsellL= Sell1;
bs_AsellL= BarsSince(AsellL);
bs_BsellL= BarsSince(BsellL);
bars_sellL= IIf(bs_ASellL<= bs_BsellL,bs_AsellL,0);

//Short
AsellS= ShortPattern;
BsellS= Cover1;
bs_AsellS= BarsSince(AsellS);
bs_BsellS= BarsSince(BsellS);
bars_sellS= IIf(bs_ASellS<= bs_BsellS,bs_AsellS,0);
hilitecode=ParamToggle("Hi-lite patterns","No|Yes",0);

// CCI Line

CCIcolor= IIf(((bars_sellL OR bars_sellS) OR AllPAtterns) AND hilitecode==1,patterncolor,zcolor);
Plot(round(z),"WCCI", CCIcolor , styleLine | styleThick);

// Turbo CCI

Plot(round(z6),"TCCI", z6color, styleLine);

// CCI Histogram

Plot( array, "", colorDefault, styleLine | styleThick | styleNoLabel);
Plot( array, "", Color, styleHistogram | styleThick| styleNoLabel);

// BackTest Long

LastPatLong= BuyPattern;
LastPatBarLong= BarsSince(LastPatLong);
DDL=IIf((((LLV(L,LastPatBarLong)-Ref(C,-LastPatBarLong))))/ticdiv>=0,0,(((LLV(L,LastPatBarLong)-Ref(C,-LastPatBarLong))))/ticdiv);
BTExitLong= (((C-Ref(C,-LastPatBarLong))))/ticdiv;
PeakLong=IIf((((HHV(H,LastPatBarLong)-Ref(C,-LastPatBarLong))))/ticdiv<=0,0,(((HHV(H,LastPatBarLong)-Ref(C,-LastPatBarLong))))/ticdiv);
StopLong1= Ref(C,-LastPatBarLong) - (Ref(L,-LastPatBarLong) - (stopval*ticdiv) -  (spread*ticdiv));
stoplong= (((StopLong1)))/ticdiv;
BackTestLongTitle= WriteIf(Sell1,EncodeColor(colorBlue) + "\n" +
"Stop    " + (Ref(C,-LastPatBarLong) - (round(stoplong)*ticdiv)) + "    " + round(stoplong) + "\n" +
"DD      " + (Ref(C,-LastPatBarLong) + (round(DDL)*ticdiv)) + "    " +  round(DDL) + "\n" +
"Exit      " + (Ref(C,-LastPatBarLong) + (round(BTExitLong)*ticdiv)) + "    " + round(BTExitLong) + "\n" +
"Peak   " + (Ref(C,-LastPatBarLong) + (round(PeakLong)*ticdiv)) + "    " + round(PeakLong) +  "\n",EncodeColor(colorBlue) + "\n" +
"Stop    " + (Ref(C,-LastPatBarLong) - (round(stoplong)*ticdiv)) + "    " + round(stoplong) + "\n" +
"DD      " + (Ref(C,-LastPatBarLong) + (round(DDL)*ticdiv)) + "    " +  round(DDL) + "\n" +
"Exit      " + (Ref(C,-LastPatBarLong) + (round(BTExitLong)*ticdiv)) + "    " + round(BTExitLong) + "\n" +
"Peak   " + (Ref(C,-LastPatBarLong) + (round(PeakLong)*ticdiv)) + "    " + round(PeakLong) + "\n");

// BackTest Short

LastPatShort= ShortPattern;
LastPatBarShort= BarsSince(LastPatShort);
DDS= IIf((((Ref(C,-LastPatBarShort)-HHV(H,LastPatBarShort))))/ticdiv>=0,0,(((Ref(C,-LastPatBarShort)-HHV(H,LastPatBarShort))))/ticdiv);
BTExitShort= (((Ref(C,-LastPatBarShort)-C)))/ticdiv;
PeakShort= IIf((((Ref(C,-LastPatBarShort)-LLV(L,LastPatBarShort))))/ticdiv<=0,0,(((Ref(C,-LastPatBarShort)-LLV(L,LastPatBarShort))))/ticdiv);
StopShort1= (Ref(H,-LastPatBarShort) + (Stopval*ticdiv) + (spread*ticdiv)) - Ref(C,-LastPatBarShort);
StopShort= (((StopShort1)))/ticdiv;
BackTestShortTitle= WriteIf(Cover1,EncodeColor(colorRed) + "\n" +
"Stop    " + (Ref(C,-LastPatBarShort) + (round(stopshort)*ticdiv)) + "    " + round(stopshort) + "\n" +
"DD      " + (Ref(C,-LastPatBarShort) + abs(round(DDS)*ticdiv)) + "    " +  round(DDS) + "\n" +
"Exit      " + (Ref(C,-LastPatBarShort) - (round(BTExitShort)*ticdiv)) + "    " + round(BTExitShort) + "\n" +
"Peak   " + (Ref(C,-LastPatBarShort) - (round(PeakShort)*ticdiv)) +   "    "  +   round(PeakShort) + "\n",EncodeColor(colorRed)+ "\n" +
"Stop    " + (Ref(C,-LastPatBarShort) + (round(stopshort)*ticdiv)) + "    " + round(stopshort) + "\n" +
"DD      " + (Ref(C,-LastPatBarShort) + abs(round(DDS)*ticdiv)) + "    " +  round(DDS) + "\n" +
"Exit      " + (Ref(C,-LastPatBarShort) - (round(BTExitShort)*ticdiv)) + "    " + round(BTExitShort) + "\n" +
"Peak   " + (Ref(C,-LastPatBarShort) - (round(PeakShort)*ticdiv)) +   "    "  +   round(PeakShort) + "\n");

// Backtest title

BackTestCode= ParamToggle("Display Stop,DD,Peak,Exit stats","No|Yes",0);
BackTestTitle= WriteIf((bars_sellL>0 OR Sell1) AND BackTestCode==1,BackTestLongTitle ,WriteIf((bars_sellS>0 OR Cover1 )AND BackTestCode==1,BackTestShortTitle ,""));

// Stop in

Longbar= L+rbint;
Shortbar= H-rbint;
sstoptitle=WriteIf(timercode==2, EncodeColor(colorBlue) + "\n" + "Stop In Long  " + Longbar + EncodeColor(colorRed) + "\n" + "Stop In Short  " + Shortbar + "\n","");

// Stop out

stopCode=ParamToggle("Display stop-out ","No|Yes",0);
StopLong1= C -(L - (stopval*ticdiv) - (spread*ticdiv));
stoplong1c=C-stoplong1;
stoplong= round(StopLong1/ticdiv);
StopShort1= (H + (stopval*ticdiv) + (spread*ticdiv)) - C;
stopshortc= C+StopShort1;
StopShort= round(StopShort1/ticdiv);
stoptitle= WriteIf(stopcode==1,EncodeColor(colorBlue) + "\n" + "Stop Out Long  " + stoplong1c + "   " +stoplong + "\n" +
EncodeColor(colorRed) + "Stop Out Short  " + stopshortc + "   " + stopshort + "\n","");

// Title

Title = "\n" + "" + EncodeColor(colorWhite) + Date() + "\n" + "\n" +
timetitle + "\n" + "\n" + Lastpricetitlehi + "\n" +  Closecolor + C + "\n" +
Lastpricetitlelo + "\n" + CCIpointmovetitle + wptitle + HiDayTitle + LoDayTitle + RangeTitle1 + BackTestTitle + Signaltitle + sstoptitle + stoptitle;
_SECTION_END();
Previous Post Next Post
